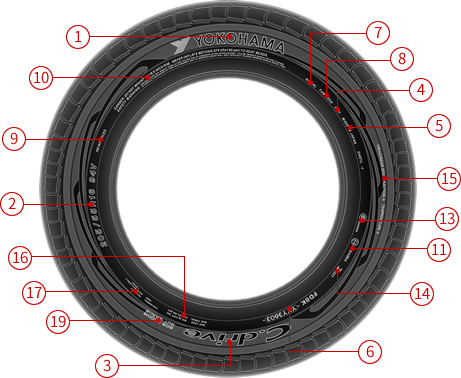

Sidewall Branding for Passenger Car Tyre

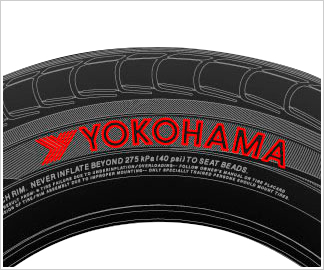

- Manufacturer’s Name

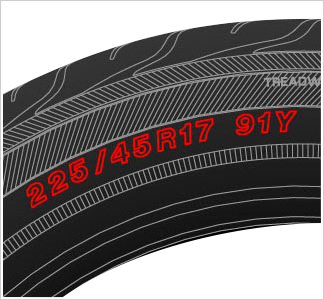

- Tyre Size Designation

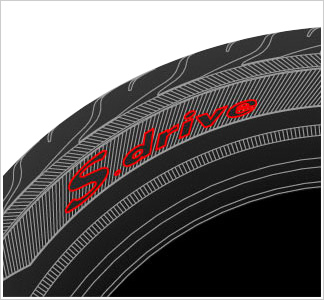

- Brand Name
- Tread Pattern Name

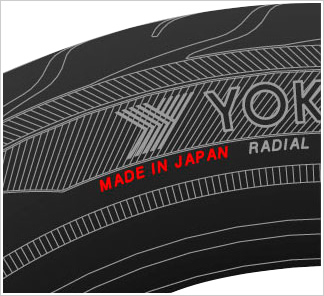

- Country of Origin

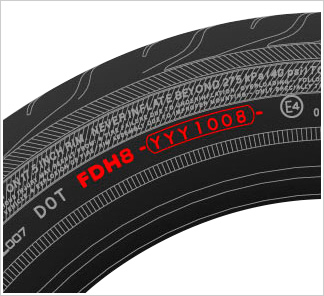

- Identification Serial Number

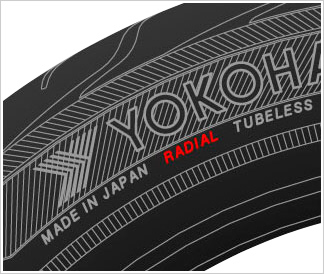

- “RADIAL” Designation
-
The word “RADIAL” is marked for radial ply tyre.

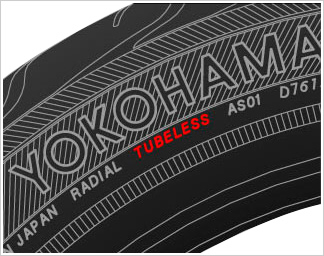

- “TUBELESS” Designation
-
The word “TUBELESS” must be branded on tubeless type tyre.

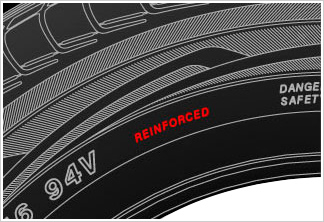

- “REINFORCED” Designation
-
Passenger car tyres designed for loads and inflation pressure higher than the Standard version. (“EXTRA LOAD (XL)”) represents the same meaning as “REINFORCED”.)

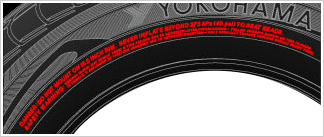

- Safety Warning
-
[ Example ]
SERIOUS INJURY MAY RESULT FORM:
* TYRE FAILURE DUE TO
UNDER INFLATION / OVERLOADING – – FOLLOW OWNER’S MANUAL OR TYRE PLACARD IN VEHICLE.
* EXPLOSION OF TYRE / RIM ASSEMBLY DUE TO IMPROPER MOUNTING – – ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TYRES.
DANGER: DO NOT MOUNT ON 16.5 INCH RIM.NEVER INFLATE BEYOND 275 kPa (40 psi) TO SEAT BEADS.

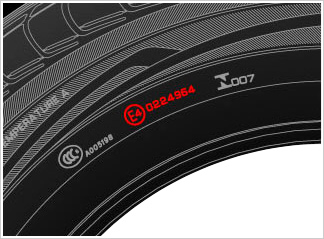

- ECE Mark
-
The symbol certifying compliance with ECE Regulations respectively.
The numbers following the ECE mark is a number authorized by the ECE.

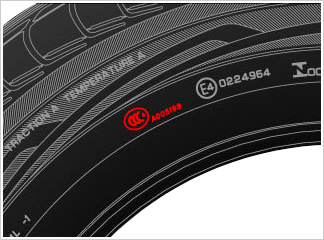

- CCC Mark
-
The symbol certifying compliance with the China Compulsory Certification.
The numbers following the CCC mark is a factory code.

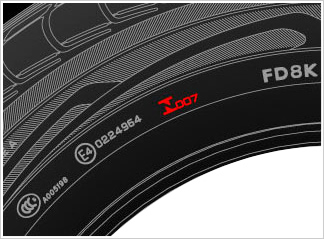

- INMETRO Mark
-
The symbol marked on the product indicates compliance with the Brazilian Technical Standard, Regulation NR.5 (INMETRO).

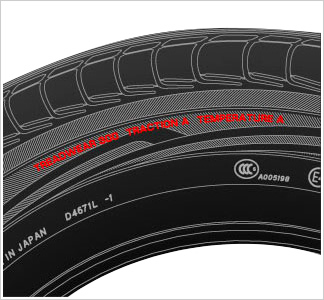

- UTQG Labelling
- Max. Load and Max. Press
-
Maximum permissible inflation pressure and load rating required by the regulations for North America.
[ Example ] MAX. LOAD 670 kg (1477 Ibs)
MAX. PRESS. 340 kPa (50 psi)
- Construction Labelling
-
[ Example ]
PLIES
SIDEWALL : POLYESTER 2
TREAD : POLYESTER 2 + STEEL 2 + NYLON 1
- Fitting Position
